Profile

ASB Welding Machinery Sdn Bhd, incorporated in June 2009 as a private limited company in Malaysia, is the sole distributor of a comprehensive range of metal welding and cutting machineries and equipment. The company’s clients comprise both multi-national companies as well as small-medium enterprises from the fields of engineering, fabrication, metal works and the automotive industry.In line with its five-year growth plan, ASB Welding Machinery aspires to expand its business scope from the northern region to encompass the country’s central region and become an integral player in the welding and cutting industry.

Equipment and machinery products and servicing offered by ABS Welding Machinery include:

• Welding and cutting machines, accessories, chemicals and related spare parts.
•  CNC profile cutting machines, plasma welding and cutting machines, CNC drilling, cutting systems, robotics welding and cutting system and special purpose machines.
• Stainless steel, aluminium and copper wires and rods.
• Silver brazing alloys, fluxes, abrasive, buffing and polishing products.
• Welding electrodes (mild steel, low hydrogen, stainless steel, hard facing and other  specialised wire/electrodes), MIG wires and tungsten electrodes.
• Rental of welding machineries and trading activities.

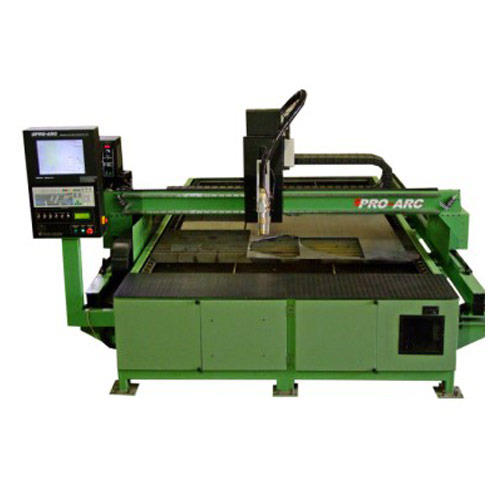

• Very high precision plasma cutting.
• High mechanical accuracy to +/- 0.1 mm
• Axis positioning speed of 12 mtrs/min
• X and 11 axis travel on precision double "V" linear guides.
• Windows based CNC unit.
• Fast and accurate positioning with brushless ac servo motors.
• Long axis is dual synchronised.
• Strong integrated cutting table io support heavy loads.
• Crash protected magnetic mount for the plasma torch head.
• Quick response AVC automatic torch height control.

Plasma Cutting Machine, which is well known for its cutting efficiency and high speed. This machine has been designed precisely in order to cater to the requirements of our customers’ spread worldwide. Moreover, this machine is widely used in processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, and board cutting.

• PRO-C 1000 & PRO-C 1500
• BTH - Stud Welding
• Welding range: Æ 2-12 mm· Welding materials: steel, stainless steel, aluminium·
• Highest operational reliability, excellent welding quality, high power-on time·
• Simple handling· Indication of all functions by LED, display of potential error messages·
• Electronic control of all functions·
• Welding time continuously adjustable (LBH 710/LBH 910: timing divided up into two time

• Easy operation. Put product on the table, place the tip in position and press the hand switch. All welding process will be done.
• You don’t have to hold product, just put it on the table — One-Man Operation!
• Table type electrode minimizes protrusions in the product.Eliminates grinder finishing and keeps the work environment clean.
• Reduces production time! Suitable for high-mix low-volume production.
• Workers stay in easy working position and keep the same production speed.
• No restrictions of designing the products for spot welding.

• Model: NK-20HE810-M
• Brand: Koyo Giken - Resistant Welding
• Rated Capacity: 30KVA
• Max Welding Current: 10,000A
• Air Pressure: 0.5Mpa
• Electrode Force: 2.2KN
• Table Size:  (T*W*L)15*800*1M
• Gun Length Stroke: 320

• Nelson - Stud Welding
• NCD+ 1000 / NCD+ 1600
• Ultra Portable. Half the weight of a conventional CD welding power source.Consistency and Reliability. Weld strength consistently exceeds that of the stud or parent metal.Assembly Quality. No back side marking, burn through, or dimpling. A vibration/leak-proof connection.

• Precision speed controls that suitable automation application
• Digital display meter on the control box
• 5 digits LED display meter for indicate RPM
• Variable speed models: A for 0.15~4rpm, B for 0.3~8rpm, C for 0.4~12rpm, D 0.55~16 and additional speed ranges available on special order
• Encoder mounts onto PMDC motor.
• Outstanding speed range: Adjusting ratio 1:37.
• Allows for input voltage hookup 100~240VAC without manual linking.
• Standard 38.5mm diameter through- hole for gas purge

• Longitudinal Seamer
• Electric motor cases
• Filter elements
• Automotive exhaust
• Unclear vessels
• Vacuum component
• Cryogenic vessels
• Water tank
• Aircraft components

• CE conformity
• Standard38mm through-hole
• Remote foot switch – Run / Stop control
• All units are high frequency protected
• Additional speed ranges available on special order
• U-Type is a special design for 0～90° circumferential welding and can be used for eldments size up to max. 300 mmø with 300 mm L.

• Can be adjust voltage as per welding condition
• Quckly welding during 0.001-0.003 seconds.
• Easy welding and improve welding efficiency.
• Easy to operate and light carry.
• Suitable for iron case industries, control distribution box, elevator control panel.. etc.
• Quickly and convenient welding methods.
• Specification:

            * Model: YSSWS800U ( Up Type )
            * Input voltage: 110V, single phase
            * Output voltage: 800A
            * Charge range: DC 40-DC 140V
            * Suitable material: mild steel , stainless steel : 0.5mm - 4mm
              Aluminum, copper, brass  : 0.5mm - 4mm
            * Dimension: (W)360 x (D)260 x (H)810 mm
            * Weight: 29kgs
